HT-680MB Vehicle Refrigeration Unit 6300W Cooling 27m3 Capacity

Name: HT680MB Vehicle Refrigeration Unit 6300W Cooling 27m3 Capacity
Brand: Yinhuasheng/OEM
Price: 1 USD

Application Box Volume : ≤27 m3

Compressor Mode : GY21/GY17

Cooling Capacity(-18℃) : 3170W

Compressor Displacement : 209/177 CC

Temperature Range : -25°C To +25°C

Evaporator : Inner grooved copper tube&aluminum Fin

Outside Temperature : 30°C To 50 °C

Compressor Brand : Guangyu

Cooling Capacity(0℃) : 6300W

Model : HT-680MB

Brand Name : Yinhuasheng/OEM

Model Number : HT-680MB

Certification : CE

Place of Origin : China

MOQ : 1SET

Payment Terms : TT/LC

Supply Ability : 1000 sets per month

Contact Now

1. Direct engine drive.

2. Driven by vehicle engine, this is designed for 27m³ refrigerated trucks, to deliver the chill & frozen foods, medicals, fruits, vegetables, ice cube, sea foods, etc.

3. OEM customized service are avaliable.

4. Low operational cost and service cost.

5.Easily installation.

6.Suitable for long distance transportation.

7.The embedded evaporator does not occupy the interior space of the carriage.

8.Heating system as standard.

Product Pictures:

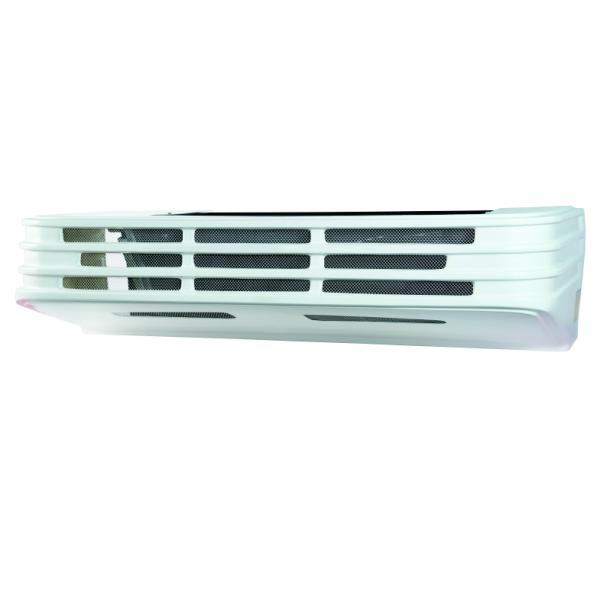

HT-680MB Vehicle Refrigeration Unit 6300W Cooling 27m3 Capacity

Features:

► Eco-friendly refrigerant R404A.

►Corrosion resistant and high strength FRP canning material.

► Aluminium fin parallel flow condenser, light and compact, with good heat exchanging.

► Inner grooved copper tube,with strong evaporator, with large airflow and good protection to the evaporator coils.

► Strong reliable and stable compressor for R404a systems specially.

► Digital display control panel,minimal operation.

► HP and LP switch safety protection.

► Large cooling capacity, reliable performance.

Specification

Unit Model		HT-680MB
Applicable Temperature(℃)		-25℃ ~+25℃
Box Volume (m³)		≤27m³
Cooling Capacity (W)	0℃	6300 W
	30℃	3170 W
Compressor	Model	GY21
	CC	209 CC
	Lubricating Oil	PAG 68
Evaporator	Material	Inner grooved copper tube
	Number of Scroll Brushless Fans	3 PCS
Condenser	Material	Parallel flow condenser
	Number of Fans	2 PCS
Refrigerant		R404a
Refrigerant Charge		2.8KG
Box Temperature Adjustment		Electronic digital display
Safety Protect		High and low pressure switch
Defrosting		Hot gas defrost automatically
Weight/Dimensions	1840700650 ＜139 KG
Drive Model		Non-independent engine driven
